Block Diagram

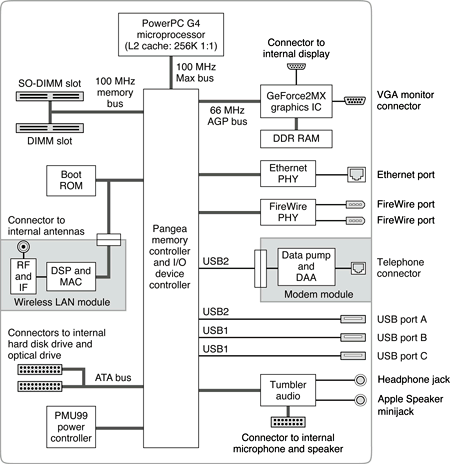

Figure 2-1 is a simplified block diagram of the main logic board. The diagram shows the main ICs and the buses that connect them together.


Figure 2-1 Block diagram

[image: ../art/ts01.gif]
