Address Book Contacts

Schema Name	`com.apple.Contacts`
Declared in	`/System/Library/SyncServices/Schemas/Contacts.syncschema`
Data Classes	`com.apple.Contacts`
Availability	Available in Mac OS X v10.4 and later.

The Contacts schema is used to represent a database of contact information—information about people and companies—where contacts can be grouped hierarchically. These entities are used by many Apple Applications including Address Book, Mail, and iChat. Address Book is the primary end-user application used to author contacts, so caution should be taken when modifying contact records from other applications.

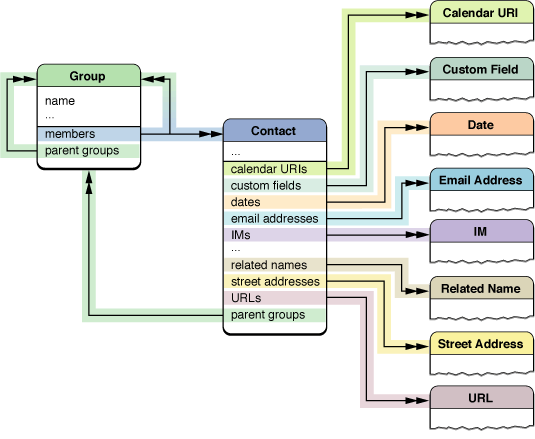

Figure 1 illustrates the entities, attributes, and relationships contained in the Contacts schema.

Figure 1 Contacts schema

Calendar URI

Entity name	`com.apple.contacts.CalendarURI`
Data class	`com.apple.Contacts`
Availability	Available in Mac OS X v10.5 and later.

A protocol-independent location for a user's calendar.

Attribute	Type	Description
`type`	`enum`	The type of URI. Possible values are `home`, `work`, and `other`. If `other`, then `label` is used. Available in Mac OS X v10.5 and later.
`label`	`string`	The label used to display this attribute. Available in Mac OS X v10.5 and later.
`value`	`string`	The protocol-independent location for this calendar—for example, `http://cal.host1.com/user/cal.ics`. Available in Mac OS X v10.5 and later.

Attribute

Type

Description

type

enum

The type of URI. Possible values are home, work, and other. If other, then label is used.

Available in Mac OS X v10.5 and later.

label

string

The label used to display this attribute.

Available in Mac OS X v10.5 and later.

value

string

The protocol-independent location for this calendar—for example, http://cal.host1.com/user/cal.ics.

Available in Mac OS X v10.5 and later.

Relationship	Targets	Description
`contact`	Contact	The contact that this record belongs to. Available in Mac OS X v10.5 and later.

Relationship

Targets

Description

contact

Contact

The contact that this record belongs to.

Available in Mac OS X v10.5 and later.

Contact

Entity name	`com.apple.contacts.Contact`
Data class	`com.apple.Contacts`
Availability	Available in Mac OS X v10.4 and later.

A Contact contains information about a person or company including its name, phone numbers, email addresses, street address, instant message accounts, important dates, and an image used for display. Below are the attributes and relationships of a Contact record.

Attribute	Type	Description
`birthday`	`date`	This contact’s birthday. Available in Mac OS X v10.4 and later.
`company name`	`string`	This contact’s company or organization name, if applicable. Available in Mac OS X v10.4 and later.
`company name yomi`	`string`	A phonetic representation of this contact’s company or organization name. Available in Mac OS X v10.4 and later.
`department`	`string`	This contact’s department name within a company, if applicable. Available in Mac OS X v10.4 and later.
`display as company`	`enum`	Specifies how to display this contact. Possible values are `person` and `company`. Available in Mac OS X v10.4 and later.
`display order`	`enum`	Specifies the order of the first and last names. Possible values are `firstNameFirst` and `lastNameFirst`. Available in Mac OS X v10.4 and later.
`first name`	`string`	This contact’s first name. Available in Mac OS X v10.4 and later.
`first name yomi`	`string`	A phonetic representation of this contact’s first name. Available in Mac OS X v10.4 and later.
`hobby`	`string`	This contact’s hobby. Available in Mac OS X v10.4 and later.
`image`	`data`	An image representing this contact. Available in Mac OS X v10.4 and later.
`job title`	`string`	This contact’s job title, if applicable. Available in Mac OS X v10.4 and later.
`last name`	`string`	This contact’s last name. Available in Mac OS X v10.4 and later.
`last name yomi`	`string`	A phonetic representation of this contact’s last name. Available in Mac OS X v10.4 and later.
`maiden name`	`string`	This contact’s maiden name, if applicable. Available in Mac OS X v10.4 and later.
`middle name`	`string`	This contact’s middle name. Available in Mac OS X v10.4 and later.
`middle name yomi`	`string`	A phonetic representation of this contact’s middle name. Available in Mac OS X v10.4 and later.
`nickname`	`string`	This contact’s nickname if applicable. Available in Mac OS X v10.4 and later.
`notes`	`string`	Miscellaneous notes about this contact. Available in Mac OS X v10.4 and later.
`short name`	`string`	This contact’s short name. Can be any string—for example, a login name. Available in Mac OS X v10.4 and later.
`suffix`	`string`	Suffix appended to this contact’s name, such as “Sr.,” “Jr.,” “III,” or “Esq.” Available in Mac OS X v10.4 and later.
`ticker symbol`	`string`	A company’s ticker symbol—for example, AAPL for Apple Computer. Available in Mac OS X v10.4 and later.
`title`	`string`	Title in front of this contact’s name, such as “Mr.,” “Mrs.,” “General,” “Cardinal,” or “Lord.” Available in Mac OS X v10.4 and later.

Relationship	Targets	Description
`calendar URIs`	Calendar URI	One or more calendars belonging to this contact. Available in Mac OS X v10.5 and later.
`custom fields`	Custom Field	Custom fields associated with this contact. Available in Mac OS X v10.4 and later.
`dates`	Date	Miscellaneous dates associated with this contact, such as a spouse’s birthday or a wedding anniversary. Available in Mac OS X v10.4 and later.
`email addresses`	Email Address	Email addresses for this contact. Available in Mac OS X v10.4 and later.
`IMs`	IM	This contact’s instant message accounts. Available in Mac OS X v10.4 and later.
`parent groups`	Group	Groups that contain this contact. Available in Mac OS X v10.4 and later.
`phone numbers`	Phone Number	Phone numbers for this contact. Available in Mac OS X v10.4 and later.
`Primary Calendar URI`	CalendarURI	The primary calendar belonging to this contact. Available in Mac OS X v10.5 and later.
`primary custom field`	Custom Field	The primary custom field associated with this contact. Available in Mac OS X v10.4 and later.
`primary date`	Date	The primary date associated with this contact—for example, a birthday. Available in Mac OS X v10.4 and later.
`primary email address`	Email Address	This contact’s primary email address. Available in Mac OS X v10.4 and later.
`primary IM`	IM	This contact’s primary instant message account. Available in Mac OS X v10.4 and later.
`primary phone number`	Phone Number	This contact’s primary phone number. Available in Mac OS X v10.4 and later.
`primary related name`	Related Name	The primary person this contact is related to—for example, a spouse. Available in Mac OS X v10.4 and later.
`primary street address`	Street Address	The primary mailing address for this contact. Available in Mac OS X v10.4 and later.
`primary URL`	Primary URL	The primary URL associated with this contact. Available in Mac OS X v10.4 and later.
`related names`	Related Name	Names of people related to this contact. Available in Mac OS X v10.4 and later.
`street addresses`	Street Address	Mailing addresses for this contact. Available in Mac OS X v10.4 and later.
`URLs`	URL	URLs associated with this contact. Available in Mac OS X v10.4 and later.

Custom Field

Entity name	`com.apple.contacts.Custom Field`
Data class	`com.apple.Contacts`
Availability	Available in Mac OS X v10.4 and later.

A custom field about a contact. Simply a key-value pair where both the key and the value are strings. Below are the attributes and relationships of a Custom Field record.

Attribute	Type	Description
`label`	`string`	The label used to display this attribute. Available in Mac OS X v10.4 and later.
`value`	`string`	The value of this attribute. Available in Mac OS X v10.4 and later.

Attribute

Type

Description

label

string

The label used to display this attribute.

Available in Mac OS X v10.4 and later.

value

string

The value of this attribute.

Available in Mac OS X v10.4 and later.

Relationship	Targets	Description
`contact`	Contact	The contact that this record belongs to. Available in Mac OS X v10.4 and later.

Relationship

Targets

Description

contact

Contact

The contact that this record belongs to.

Available in Mac OS X v10.4 and later.

Date

Entity name	`com.apple.contacts.Date`
Data class	`com.apple.Contacts`
Availability	Available in Mac OS X v10.4 and later.

Represents an important date, other than a birthday, associated with a contact. Below are the attributes and relationships of a Date record.

Attribute	Type	Description
`label`	`string`	A label used to display this attribute when the `type` is `other`. For example, “First Date.” Available in Mac OS X v10.4 and later.
`type`	`enum`	The type of date. Possible values are `anniversary`, and `other`. If `other` ,then `label` is used. Available in Mac OS X v10.4 and later.
`value`	`date`	The date of the event. Available in Mac OS X v10.4 and later.

Attribute

Type

Description

label

string

A label used to display this attribute when the type is other. For example, “First Date.”

Available in Mac OS X v10.4 and later.

type

enum

The type of date. Possible values are anniversary, and other. If other ,then label is used.

Available in Mac OS X v10.4 and later.

value

date

The date of the event.

Available in Mac OS X v10.4 and later.

Relationship	Targets	Description
`contact`	Contact	The contact that this record belongs to. Available in Mac OS X v10.4 and later.

Relationship

Targets

Description

contact

Contact

The contact that this record belongs to.

Available in Mac OS X v10.4 and later.

Email Address

Entity name	`com.apple.contacts.Email Address`
Data class	`com.apple.Contacts`
Availability	Available in Mac OS X v10.4 and later.

Represents a contact’s email address. Below are the attributes and relationships of a Email Address record.

Attribute	Type	Description
`label`	`string`	A label used to display this attribute when the `type` is `other`. For example, “.Mac email.” If this attribute is not set, then Address Book will use “other” as the label. Available in Mac OS X v10.4 and later.
`type`	`enum`	The type of email address. Possible values are `home`, `work`, and `other`. If `other`, then `label` is used. Available in Mac OS X v10.4 and later.
`value`	`string`	The email address. Available in Mac OS X v10.4 and later.

Attribute

Type

Description

label

string

A label used to display this attribute when the type is other. For example, “.Mac email.” If this attribute is not set, then Address Book will use “other” as the label.

Available in Mac OS X v10.4 and later.

type

enum

The type of email address. Possible values are home, work, and other. If other, then label is used.

Available in Mac OS X v10.4 and later.

value

string

The email address.

Available in Mac OS X v10.4 and later.

Relationship	Targets	Description
`contact`	Contact	The contact that this record belongs to. Available in Mac OS X v10.4 and later.

Relationship

Targets

Description

contact

Contact

The contact that this record belongs to.

Available in Mac OS X v10.4 and later.

Group

Entity name	`com.apple.contacts.Group`
Data class	`com.apple.Contacts`
Availability	Available in Mac OS X v10.4 and later.

A collection of contacts and/or groups. Allows nonstrict hierarchical organization of contacts—contacts and groups can belong to multiple groups. Also supports phone, email, and street address distribution lists. Below are the attributes and relationships of a Group record.

Attribute	Type	Description
`name`	`string`	The name of this group. Available in Mac OS X v10.4 and later.

Attribute

Type

Description

name

string

The name of this group.

Available in Mac OS X v10.4 and later.

Relationship	Targets	Description
`distribution email addresses`	Email Address	Email addresses for this group used as a distribution list. Available in Mac OS X v10.4 and later.
`distribution phone numbers`	Phone Number	Phone numbers for this group used as a distribution list. Available in Mac OS X v10.4 and later.
`distribution street addresses`	Street Address	Street addresses for this group used as a distribution list. Available in Mac OS X v10.4 and later.
`members`	Contact, Group	Contacts and subgroups belonging to this group. Available in Mac OS X v10.4 and later.
`parent groups`	Group	Groups that contain this group. Available in Mac OS X v10.4 and later.

IM

Entity name	`com.apple.contacts.IM`
Data class	`com.apple.Contacts`
Availability	Available in Mac OS X v10.4 and later.

A contact’s instant message account. Below are the attributes and relationships of an IM record.

Attribute	Type	Description
`label`	`string`	A label used to display this attribute when the `type` is `other`. Available in Mac OS X v10.4 and later.
`service`	`enum`	The type of instant message services. Possible values are `aim`, `jabber`, `msn`, `yahoo`, and `icq`. Available in Mac OS X v10.4 and later.
`type`	`enum`	The type of account. Possible values are `home`, `work`, and `other`. If `other` then `label` is used. Available in Mac OS X v10.4 and later.
`user`	`string`	The instant message account name. Available in Mac OS X v10.4 and later.

Relationship	Targets	Description
`contact`	Contact	The contact that this record belongs to. Available in Mac OS X v10.4 and later.

Relationship

Targets

Description

contact

Contact

The contact that this record belongs to.

Available in Mac OS X v10.4 and later.

Phone Number

Entity name	`com.apple.contacts.Phone Number`
Data class	`com.apple.Contacts`
Availability	Available in Mac OS X v10.4 and later.

Represents a contact’s phone number. Below are the attributes and relationships of a Phone Number record.

Attribute	Type	Description
`label`	`string`	A label used to display this attribute when `type` is `other`. For example, “home business.” Available in Mac OS X v10.4 and later.
`type`	`enum`	Specifies the type of phone number. Possible values are `home`, `work`, `mobile`, `home fax`, `work fax`, `pager`, `main` and `other`. If `other` then the `label` attribute is used. Available in Mac OS X v10.4 and later.
`value`	`string`	The phone number. Available in Mac OS X v10.4 and later.

Attribute

Type

Description

label

string

A label used to display this attribute when type is other. For example, “home business.”

Available in Mac OS X v10.4 and later.

type

enum

Specifies the type of phone number. Possible values are home, work, mobile, home fax, work fax, pager, main and other. If other then the label attribute is used.

Available in Mac OS X v10.4 and later.

value

string

The phone number.

Available in Mac OS X v10.4 and later.

Relationship	Targets	Description
`contact`	Contact	The contact that this record belongs to. Available in Mac OS X v10.4 and later.

Relationship

Targets

Description

contact

Contact

The contact that this record belongs to.

Available in Mac OS X v10.4 and later.

Related Name

Entity name	`com.apple.contacts.Related Name`
Data class	`com.apple.Contacts`
Availability	Available in Mac OS X v10.4 and later.

A name of a person that is related to a contact such as the name of a spouse or children. Below are the attributes and relationships of a Related Name record.

Attribute	Type	Description
`label`	`string`	A label used to display this attribute when the `type` is `other`. For example, “Uncle” or “Aunt.” Available in Mac OS X v10.4 and later.
`type`	`enum`	The type of this related name. Possible values are `mother`, `father`, `parent`, `sister`, `brother`, `child`, `friend`, `spouse`, `partner`, `assistant`,`manager`, and `other`. If `other`, then `label` is used. Available in Mac OS X v10.4 and later.
`value`	`string`	The name of the related person. Available in Mac OS X v10.4 and later.

Attribute

Type

Description

label

string

A label used to display this attribute when the type is other. For example, “Uncle” or “Aunt.”

Available in Mac OS X v10.4 and later.

type

enum

The type of this related name. Possible values are mother, father, parent, sister, brother, child, friend, spouse, partner, assistant,manager, and other. If other, then label is used.

Available in Mac OS X v10.4 and later.

value

string

The name of the related person.

Available in Mac OS X v10.4 and later.

Relationship	Targets	Description
`contact`	Contact	The contact that this record belongs to. Available in Mac OS X v10.4 and later.

Relationship

Targets

Description

contact

Contact

The contact that this record belongs to.

Available in Mac OS X v10.4 and later.

Street Address

Entity name	`com.apple.contacts.Street Address`
Data class	`com.apple.Contacts`
Availability	Available in Mac OS X v10.4 and later.

Represents a contact’s mailing address. Below are the attributes and relationships of a Street Address record.

Attribute	Type	Description
`city`	`string`	The city part of this address. Available in Mac OS X v10.4 and later.
`country`	`string`	The country part of this address Available in Mac OS X v10.4 and later.
`country code`	`string`	The code for the country. Available in Mac OS X v10.4 and later.
`label`	`string`	A label used to display this attribute when the `type` is `other`. For example, “Vacation home address.” Available in Mac OS X v10.4 and later.
`postal code`	`string`	The zip code part of this address. Available in Mac OS X v10.4 and later.
`state`	`string`	The state part of this address. Available in Mac OS X v10.4 and later.
`street`	`string`	The street part of this address. Available in Mac OS X v10.4 and later.
`type`	`enum`	The type of address. Possible values are `home`, `work`, and `other`. If `other` then `label` is used. Available in Mac OS X v10.4 and later.

Relationship	Targets	Description
`contact`	Contact	The contact that this record belongs to. Available in Mac OS X v10.4 and later.

Relationship

Targets

Description

contact

Contact

The contact that this record belongs to.

Available in Mac OS X v10.4 and later.

URL

Entity name	`com.apple.contacts.URL`
Data class	`com.apple.Contacts`
Availability	Available in Mac OS X v10.4 and later.

Link to a website about or associated with a contact. Below are the attributes and relationships of a URL record.

Attribute	Type	Description
`label`	`string`	A label used to display this attribute when the `type` is `other`. For example, “Home business.” Available in Mac OS X v10.4 and later.
`type`	`enum`	The type of URL. Possible values are `home page`, `home`, `work`, and `other`. If `other` then `label` is used. Available in Mac OS X v10.4 and later.
`value`	`URL`	The URL for this attribute. Available in Mac OS X v10.4 and later.

Attribute

Type

Description

label

string

A label used to display this attribute when the type is other. For example, “Home business.”

Available in Mac OS X v10.4 and later.

type

enum

The type of URL. Possible values are home page, home, work, and other. If other then label is used.

Available in Mac OS X v10.4 and later.

value

URL

The URL for this attribute.

Available in Mac OS X v10.4 and later.

Relationship	Targets	Description
`contact`	Contact	The contact that this record belongs to. Available in Mac OS X v10.4 and later.

Relationship

Targets

Description

contact

Contact

The contact that this record belongs to.

Available in Mac OS X v10.4 and later.

< Previous PageNext Page >

Hide TOC

Did this document help you?
Yes: Tell us what works for you. It’s good, but: Report typos, inaccuracies, and so forth. It wasn’t helpful: Tell us what would have helped.

Address Book Contacts

Contents:

Calendar URI

Contact

Custom Field

Date

Email Address

Group

IM

Phone Number

Related Name

Street Address

URL
