Creating a Sequence-Based Presentation

You can create a presentation that contains media objects that are displayed sequentially to the viewer instead of in parallel. To do that, you use the WOSMILSeq element.

This section shows you how to create a presentation with two video elements that are presented sequentially. The component contains a WORepetition element that uses the keys movies and movieName to lay out the video elements of the presentation.

1. Add two movie files to the Web Server Resources group of the Smile project.



2. Add a new component to the Smile project, as described in "Creating a SMIL Component". Name the component Movies.
3. Enter values for the bindings of the WOSMILRootLayout element.
   1. Enter 370 for the height binding.
   2. Enter 480 for the width binding.
4. Put a WOSMILRegion element inside the WOSMILHeadLayout element, after the WOSMILRootLayout element.
   1. Enter "meet" for the fit binding.
   2. Enter 370 for the height binding.
   3. Enter 0 for the left binding.
   4. Enter "Region1" for the regionID binding.
   5. Enter 0 for the top binding.
   6. Enter 480 for the width binding.
5. Put a WOSMILSeq element inside the WOSMILBody element. Enter "Movie sequence" for its title attribute.
6. Add the movies key to the component as an array of Strings (no accessor methods are required).
   1. Choose Edit > Edit Source > Add Key.
   2. Enter movies in the Name text field.
   3. Select "Array of" as the key's type and make sure "String (java.lang.String)" is selected in the pop-up menu.
   4. Ensure that "An instance variable" is selected under "Generate source code for," and click Add.


7. Add the movieName key as a String. Like movies, no accessor methods are needed.

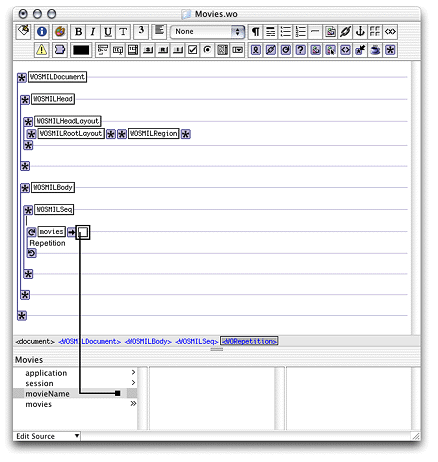

8. Put a WORepetition element inside the WOSMILSeq element. Bind list to movies and item to movieName.

9. Replace the text "Repetition" inside the WORepetition with a WOSMILMediaObject.
   1. Enter movieName for the filename binding.
   2. Enter "app" for the framework binding.
   3. Enter "video" for the mediaObjectName binding.
   4. Enter "Region1" for the regionID binding.
10. Edit the constructor in Movies.java so that it looks like the following.

    public Movies(WOContext context) {
        super(context);
        NSMutableArray availableMovies = new NSMutableArray();
        availableMovies.addObject("ipod_60_480.mov");
        availableMovies.addObject("ipod_intro_m240.mov");
        movies = new NSArray(availableMovies);
    }

Build and run the application, and connect to it using the appropriate URL, which should look like

http://<host>:<port>/cgi-bin/WebObjects/Smile.woa/wo/Movies.wo

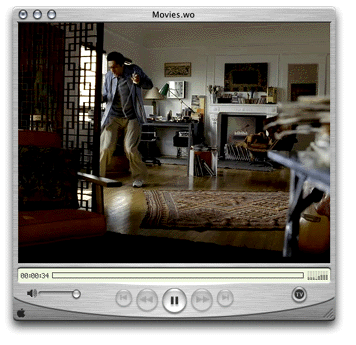

After clicking Play, you should see the movies in sequence in QuickTime Player.
