Creating an Event-Based Presentation

One of the features that makes SMIL presentations interesting is the ability to define when a media object gets displayed. For instance, you can have an image displayed five seconds after the presentation is started and have another media object appear two seconds after the first image appears. This section shows you how to do just that. You'll modify the Hello.wo component of the Smile project created in "Creating a Static Presentation".

Open the Smile project in Project Builder if it's not already open.
Add two images to the Web Server Resources group.

Open Hello.wo in WebObjects Builder if it's not already open.
Put a second WOSMILRegion element inside the WOSMILHeadLayout element.
1. Enter 75 for the top binding.
2. Enter 0 for the left binding.
3. Enter 100 for the height binding.
4. Enter 100 for the width binding.
5. Enter "meet" for the fit binding.
6. Enter "Region2" for the regionID binding.
Put a WOSMILPar element inside the WOSMILBody element, below the WOSMILMediaObject element.
Select the WOSMILMediaObject element and choose Edit > Cut.
Put the cursor inside the WOSMILPar element and choose Edit > Paste.
Put a second WOSMILMediaObject element inside the WOSMILPar element, below the existing WOSMILMediaObject element and enter the appropriate values for its bindings.
To make the media object appear five seconds after the presentation starts, you have to add the begin binding to the element.
1. Make sure the second WOSMILMediaObject is selected.
2. Click anywhere in the WOSMILMediaObject Binding Inspector window.
3. Press Return. A new binding appears titled binding1.
4. Change the binding's name to begin and enter "5s" as its value.
5. Add a binding named dur and set its value to "10s".
6. Assign this media object to Region2 by entering "Region2" for the regionID binding.
7. Enter "img" for the mediaObjectType binding.

Now Hello.wo should look like Figure 3-3.

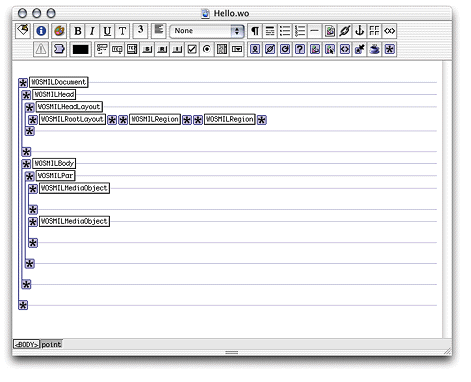

Figure 3-3 Hello.wo component after adding second WOSMILMediaObject element

Save Hello.wo. If the Smile application is not running, start it. In QuickTime Player, connect to the application using the appropriate URL, which should similar to the following one:

http://<host>:<port>/cgi-bin/WebObjects/Smile.woa/wo/Hello.wo

Click Play in QuickTime Player. The image appears after five seconds have passed.

Now you'll add a media object whose display is tied to the appearance of another media object instead of the beginning of the presentation.

Add an elementID binding to the second WOSMILMediaObject element and set its value to "MediaObject2".

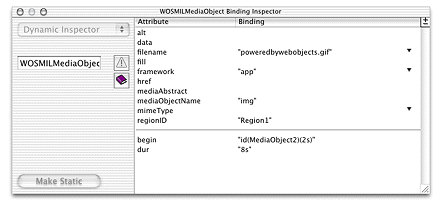

Put a third WOSMILMediaObject element inside the WOSMILPar element.
1. Add a begin binding and set its value to "id(MediaObject2)(2s)". This makes this WOSMILMediaObject appear two seconds after the second WOSMILMediaObject (with "MediaObject2" as its elementID) is displayed.
2. Add a dur binding and set its value to "8s".
3. Set the regionID binding to "Region1".
4. Set the mediaObjectName binding to "img".
5. Bind filename to the second image file you added to the project.

Save Hello.wo and reconnect to the application using QuickTime Player. After playing the presentation, you should see a window similar to the one in Figure 3-4.

Figure 3-4 Hello SMIL presentation with two images

This is the code your SMIL viewer receives when you connect to the application:

<smil id="0.0">
    <head id="0.0.1.0.0">
        <layout id="0.0.1.0.0.1.0.0">
            <root-layout background-color="#FFFFFF" skip-content="true"
                width="200" height="200" id="0.0.1.0.0.1.0.0.1.0.0">
            </root-layout>
            <region z-index="0" skip-content="true" width="200" height="75"
                left="0" fit="meet" top="0" id="Region1">
            </region>
            <region z-index="0" skip-content="true" width="100"
                height="100" left="0" fit="meet" top="75" id="Region2">
            </region>
        </layout>
    </head>
    <body id="0.0.1.1.0">
        <par region="Region1" id="0.0.1.1.0.1.0.0">
            <text dur="5s" src="http://ebruce:1234/cgi-bin/WebObjects/Smile.woa/ wr?wodata=%2FUsers%2Fernest%2FWebObjects%2FProjects%2FSMIL%2FSmile%2Fhello.txt"  region="Region1" id="0.0.1.1.0.1.0.0.1.0.0">
            </text>
            <img dur="10s" src="http://ebruce:1234/cgi-bin/WebObjects/Smile.woa/ wr?wodata=%2FUsers%2Fernest%2FWebObjects%2FProjects%2FSMIL%2FSmile%2Fipod.jpg"  region="Region2" id="MediaObject2" begin="5s">
            </img>
            <img dur="8s" src="http://ebruce:1234/cgi-bin/WebObjects/Smile.woa/ wr?wodata=%2FUsers%2Fernest%2FWebObjects%2FProjects%2FSMIL%2FSmile%2Fpoweredbywebo bjects.gif" region="Region1" id="0.0.1.1.0.1.0.0.1.2.0"  begin="id(MediaObject2)(2s)">
            </img>
        </par>
    </body>
</smil>

Notice that the id attribute of the second media object is now "MediaObject2" instead of the one generated by WebObjects.
