Services Architecture

Services allows a user to access the functionality of one application from within another application. An application that provides a service advertises the operations it can perform on a particular type of data—for example, encryption of text, optical character recognition of a bitmapped image, or generating text such as a message of the day. When the user is manipulating that particular type of data in some application, the user can choose the appropriate item in the Services menu to operate on the current data selection (or merely insert new data into the document).

This section discusses how services are processed and describes some sample services.

Contents:

Service Request
Sample Services

Service Request

Any application that signs up to use services automatically has access to the advertised functionality through its Services menu. An application does not need to know in advance what operations are available; it merely needs to indicate the types of data it uses, and the Services menu makes available the operations that apply to those types of data.

Services are performed by transferring data back and forth between applications through a shared pasteboard. Note that the two applications—service requestor and service provider—are completely separate; they do not run in a shared memory space. The pasteboard holding the data is specific to the service request and does not normally interfere with the standard Copy/Paste pasteboard.

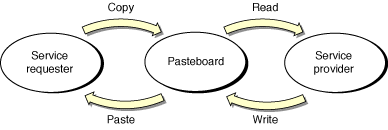

When the user chooses a Services menu item data flows as shown in Figure 1. The current selection is copied to a pasteboard which is then passed to the service provider application. If the service provider is not currently running, it is automatically launched. The service provider reads the contents of the pasteboard and operates on it. The service provider writes new data back to the pasteboard and the pasteboard is returned to the original application. The original application then pastes the pasteboard’s contents into the document, replacing the current selection, if there is one. The service provider application does not automatically quit at the end of the service request.

Not all services both receive and provide data. Some services only receive data and others only provide data. In these cases only one of the copy and paste steps is performed. Services can thus be divided into two groups:

• Processor. This type of service acts on data. A processor service acts on the current selection and then sends it to the service. For example, if a user selects an email address in a TextEdit document, and then chooses Mail > Mail To from the Services menu, TextEdit copies the person’s address to the pasteboard, the Mail application launches, and Mail pastes the address into the Send field of a new email message.

• Provider. This type of service gives data to the calling application. For example, if a user chooses Grab > Screen from the Services menu, the Grab application opens, takes a screen shot, then returns the screen shot (TIFF data in this case) to the calling application. The calling application (such as TextEdit) is responsible for pasting the data into the active document.

A service falls into both categories if it processes the current selection and then provides a replacement value. For example, a text encryption service takes the current text selection, encrypts it, and then returns the encrypted text to the service requester to replace the current selection.

Sample Services

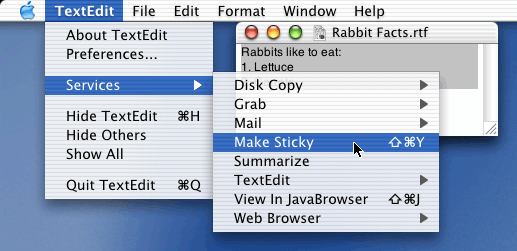

The following few figures show Services in action. Figure 2 shows the Services menu from the TextEdit application. Make Sticky is an example of a processor service. The Make Sticky command takes the current selection in the TextEdit document, opens a new Stickies document, and then pastes the selection into the Stickies document. For more convenient use, a keyboard shortcut (Command-Shift-Y) is defined for this service.

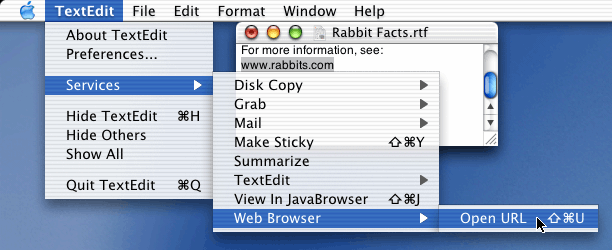

Figure 3 shows another example of a processor service. In this case, the Open URL command copies the selected text, launches a Web browser, pastes the selected text into the browser’s location field, and then tries to connect to that location.

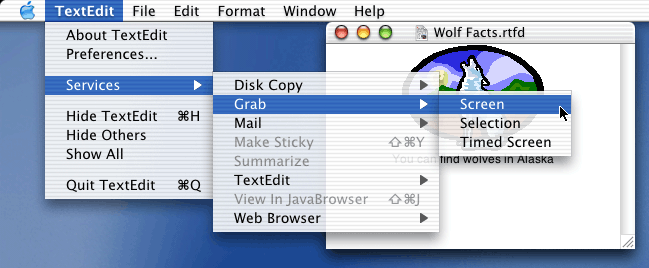

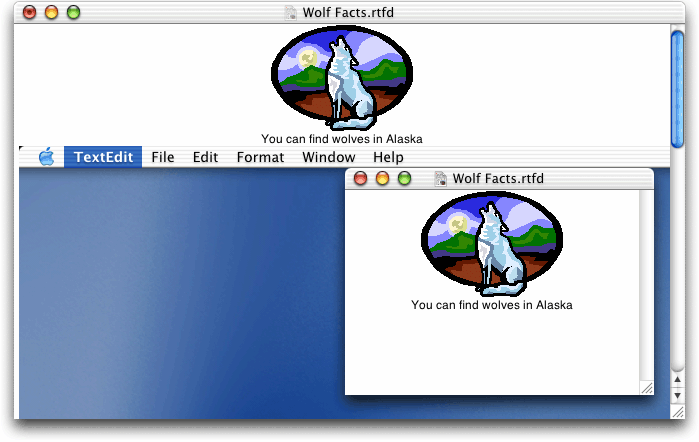

Grab is a provider service. Figure 4 shows the Wolf Facts document before Grab > Screen is invoked. Figure 5 shows the Wolf Facts document after Grab has taken a shot of the current screen and returned the data to the TextEdit application. Recall that it is TextEdit’s responsibility to do something with the returned data. In this example, TextEdit simply pastes the TIFF into the current document at the insertion point.

---
