Devices and Ports

This chapter describes both the built-in I/O devices and the ports for connecting external I/O devices. Each of the following sections describes an I/O port or device.

In this section:

USB Ports
FireWire 400 Ports
Ethernet Port
Internal Modem
AirPort Extreme Card
Hard Disk Drive
CD-ROM Drive
Combo Drive DVD-ROM/CD-RW
SuperDrive DVD-R/CD-RW Drive
Video Display
External Display Port
Keyboard
Mouse
Sound System


USB Ports

The eMac has three Universal Serial Bus (USB) ports. The USB ports are connected to two separate USB root hubs, allowing two of the USB ports to support 12 Mbps devices at the same time with no degradation of their performance. See “Uni-N Bridge and Memory Controller.”

Note: The keyboard also contains a USB hub and two more USB ports. See “Keyboard and USB.”

For more information about USB on Macintosh computers, please refer to Apple Computer’s Mac OS USB DDK API Reference and the other sources listed in “USB Interface.”

USB Connectors

The USB ports use USB Type A connectors, which have four pins each. Two of the pins are used for power and two for data. Figure 3-1 is an illustration of a Type A port; Table 3-1 shows the signals and pin assignments.


Figure 3-1  USB Type A port and pins

USB Type A port and pins

Table 3-1  Signals on the USB port

Pin

Signal name

Description

1

VCC

+5 VDC

2

D–

Data –

3

D+

Data +

4

GND

Ground

The eMac provides 5 volt power to the USB ports. The maximum current available is 500 mA on each port.

The USB ports support both low-speed and high-speed data transfers, at up to 1.5 Mbits per second and 12 Mbits per second, respectively. High-speed operation requires the use of shielded cables.

The Macintosh system software supports all four data transfer types defined in the USB specification.

USB Features

Features of the USB ports include power saving modes and the ability to boot the CD/ROM and Combo drive configurations of the eMac computer into Mac OS 9 using a USB mass-storage device.

Wake Up From Sleep

USB devices can provide a remote wakeup function for the computer. The USB root hub in the computer is set to support remote wakeup whenever a device is attached to or disconnected from the bus. The keyboard that comes with the computer uses this method to wake the computer on a key press.

Connect and Resume

The KeyLargo IC contains special circuitry that allows the computer to wake from Sleep mode on connect, disconnect, and resume events. Compatible USB devices should support the USB-suspend mode defined in the USB specification.

USB Storage Devices

The CD/ROM and Combo drive configurations of the eMac computer can boot into Mac OS 9 from a USB storage device that follows the USB Mass Storage Class specification.

Class drivers are software components that are able to communicate with many USB devices of a particular kind. If the appropriate class driver is present, any number of compliant devices can be plugged in and start working immediately without the need to install additional software. Mac OS 9 and later includes a class driver that supports devices that meet the USB Mass Storage Class specifications.

USB Controller

The eMac uses an Open Host Controller Interface (OHCI) controller for USB communication. Some early USB devices (most notably keyboards) can’t interoperate with an OHCI controller. Those devices are not supported by the Macintosh USB system software.

FireWire 400 Ports

The eMac has two external FireWire 400 IEEE 1394a ports. The features of the FireWire 400 ports are:

The FireWire 400 hardware and software provided with the eMac are capable of all asynchronous and isochronous transfers defined by the IEEE 1394a standard.

FireWire 400 Device Programming

A generic driver for mass storage devices is included in the system software. This driver is used only when a vendor-specific driver cannot be found. Apple recommends that users install vendor-provided drivers for maximum performance and functionality.

A driver for DV (digital video) is included in QuickTime 4.0 and later versions.

The eMac computer can boot from a FireWire 400 storage device that implements SBP-2 (Serial Bus Protocol) with the RBC (reduced block commands) command set. Detailed information is available only under non-disclosure agreement; contact Developer Technical Support at dts@apple.com.

When connected to another computer by a FireWire 400 bus, the eMac computer can operate as a mass storage device. See “Target Disk Mode.”

For additional information about the FireWire 400 interface and the Apple APIs for FireWire 400 device control, refer to the resources listed in “FireWire Interface.”

FireWire 400 Connector

The FireWire 400 connector has six contacts, as shown in Figure 3-2. The connector signals and pin assignments are shown in Table 3-2.


Figure 3-2  FireWire 400 connector

FireWire 400 connector

Table 3-2  Signals on the FireWire 400 connector

Pin

Signal name

Description

1

Power

unregulated DC; 17-24 V no load

2

Ground

Ground return for power and inner cable shield

3

TPB–

Twisted-pair B, differential signals

4

TPB+

Twisted-pair B, differential signals

5

TPA–

Twisted-pair A, differential signals

6

TPA+

Twisted-pair A, differential signals

Shell

Outer cable shield

When the computer is on, the power pin provides a maximum voltage of 24 V (no load) and up to 8 W total power (shared by both connectors). Zero voltage is present at the power pin when the computer is in sleep mode or when it is off.

The FireWire 400 PHY is powered as long as the computer is connected to AC power. While the PHY is operating, it acts as a repeater from one port to another so that the FireWire 400 bus remains connected.

Pin 2 of the 6-pin FireWire 400 connector is ground for both power and inner cable shield. If a 4-pin connector is used on the other end of the FireWire 400 cable, its shell should be connected to the wire from pin 2.

The signal pairs are crossed in the cable itself so that pins 5 and 6 at one end of the cable connect with pins 3 and 4 at the other end. When transmitting, pins 3 and 4 carry data and pins 5 and 6 carry clock; when receiving, the reverse is true.

For additional information about the FireWire 400 interface and the Apple APIs for FireWire 400 device control, developers should refer to the resources listed in “FireWire Interface.”

Target Disk Mode

The user has the option at boot time to put the computer into a mode of operation called Target Disk Mode (TDM).

When the eMac is in Target Disk Mode and connected to another Macintosh computer by a FireWire cable, the eMac operates like a FireWire mass storage device with the SBP-2 (Serial Bus Protocol) standard. Target Disk Mode has two primary uses:

The eMac can operate in Target Disk Mode as long as the other computer has a FireWire port and either Mac OS X (any version) or Mac OS 9 with FireWire software version 2.3.3 or later.

To put the eMac into Target Disk Mode, restart the eMac and hold down the T key until the FireWire icon appears on the display. Then connect a FireWire cable from the eMac to the other computer. When the other computer completes the FireWire connection, a hard disk icon appears on its desktop.

If the FireWire cable is disconnect or the eMac turned off while in Target Disk Mode, an alert appears on the other computer.

To take the eMac out of Target Disk Mode, drag the hard-disk icon on the other computer to the trash, then press the power button on the eMac.

Ethernet Port

The eMac has a built-in 10/100 Mbps Ethernet port. The user can connect it to an Ethernet cable from a hub, switch, or router, or to another Macintosh computer using a cross-connect cable. The connected device can be either a 10Base-T or a 100Base-TX device; the port automatically detects which type of device is connected.

The connector for the Ethernet port is a an RJ-45 connector located on the I/O panel. Table 3-3 shows the signals and pin assignments on the connector.

Table 3-3  Signals on the Ethernet connector

Pin

Signal name

Signal definition

1

TXP

Transmit (positive lead)

2

TXN

Transmit (negative lead)

3

RXP

Receive (positive lead)

4

Not used

5

Not used

6

RXN

Receive (negative lead)

7

Not used

8

Not used

The Ethernet interface in the eMac conforms to the ISO/IEC 802.3 specification, where applicable.

Internal Modem

Except for the educational configuration, the eMac has an internal, USB fax modem. The telephone connector for the modem is an RJ-11 connector on the I/O panel. A telephone cable is included with the computer.

The modem has the following features:

The modem appears to the system as a serial port that responds to the typical AT commands. The modem provides an analog sound output for monitoring the progress of the modem connection.

AirPort Extreme Card

The eMac computer supports the AirPort Extreme Card, an internal wireless LAN module connected to the PCI bus. The AirPort Extreme Card is available as a build-to-order option or as a user-installable upgrade through the Apple Store.

By communicating wirelessly with a base station, the AirPort Extreme Card can be used for Internet access, email access, and file exchange. A base station provides the connection to the Internet or the bridge between the wireless signals and a wired LAN or both. The AirPort Extreme Base Station has connectors for a wired LAN or WAN, a DSL or cable modem, and a standard telephone line using the built-in 56 Kbps modem that is available on some base station configurations.

AirPort Extreme transmits and receives data at speeds up to 54 Mbps, comparable to wired networking speeds. AirPort Extreme is also compatible with other devices that follow the IEEE 802.11b standard, including PC's. For more information about Wi-Fi and compatibility, see the reference at “Wireless Networks.”

Note:  As is the case with the existing IEEE 802.11b standard, actual data throughput speeds will be lower than the indicated maximum connection speeds. Inherent in wireless LAN systems, bandwidth overhead is required for wireless routing, scrambling, security error correction, and other processes.

Data Security

AirPort Extreme has several features designed to maintain the security of the user’s data:

As an additional data security measure, VPN can be used in conjunction with the AirPort Extreme data security.

AirPort Extreme Hardware

The AirPort Extreme Card is a wireless LAN module based on the IEEE draft specification of the 802.11g standard using both OFDM (orthogonal frequency-division multiplexing) and DSSS technologies. Using DSSS, AirPort Extreme is interoperable with PC-compatible wireless LANs that conform to the 802.11b standard at speeds of 11 Mbps, 5.5 Mbps, 2 Mbps, and 1 Mbps. Using OFDM, AirPort Extreme is compatible with all 802.11g draft standard speeds.

Two AirPort Extreme antennas are built into the computer’s enclosure. One antenna is always used for transmitting. Either of the two antennas may be used for receiving. Using a diversity technique, the AirPort Extreme Card selects the antenna that gives the best reception.

AirPort Extreme Software

Software that is provided with the AirPort Extreme Card includes

Hard Disk Drive

The internal hard disk drive has a storage capacity of 40 GB for the CD-ROM drive, 60 GB for the Combo drive, and 80 GB for the SuperDrive. The drive uses the Ultra DMA/66 interface. The drive is cable-selected as master to an Ultra ATA interface capable of Ultra DMA Mode 4, 66 megabytes per second. This interface is compatible with ANSI-INCITS industry standard ATA/ATAPI-6.

The software that supports the internal hard disk is similar to that in previous Macintosh models with internal IDE drives and includes DMA support. To obtain information about that software and about the ANSI standard for the Ultra DMA interface, see “ATA Interface.”

CD-ROM Drive

One configuration of the eMac has an internal CD-ROM drive. The drive has a tray for loading the disc. The drive is capable of reading at 32x speed.

Digital audio signals from the CD-ROM drive can be played through the sound outputs under the control of the Sound Manager.

The CD-ROM drive is an ATAPI drive and is cable-select jumpered as master in an ATA Device configuration.

Combo Drive DVD-ROM/CD-RW

One configuration of the eMac computer has a tray-loading combination DVD-ROM and CD-RW drive. The Combo drive can read DVD media and read and write CD media, as shown in Table 3-4. The DVD-ROM/CD-RW drive also provides DVD-Video playback.

Table 3-4  Types of media read and written by the DVD-ROM/CD-RW drive

Media type

Reading speed

Writing speed

DVD-ROM

8x (CAV)

DVD-R

4x max (CAV)

_

CD-R

32x (CAV)

32x max

CD-RW

24x (CAV)

10x (CLV)

CD-ROM

32x (CAV)

Digital audio signals from the DVD-ROM/CD-RW drive can be played through the sound outputs under the control of the Sound Manager.

The Combo drive is connected as device 0 (master) to an independent ATA interface capable of multi-word DMA mode 2, 16 megabytes per second. This interface is compatible with ANSI-INCITS industry standard ATA/ATAPI-6.

SuperDrive DVD-R/CD-RW Drive

One configuration of the eMac computer has a tray-loading CD-RW and DVD-R SuperDrive. The drive can read and write DVD media and CD media, as shown in Table 3-5. The SuperDrive also provides DVD-Video playback with DVD MPEG 2 decode.

Table 3-5  Types of media read and written by the SuperDrive (DVD-R/CD-RW) drive

Media type

Reading speed

Writing speed

DVD-R

2x

4x, 2x, 1x depending on media

DVD-ROM

8x (single layer), 2x (dual layer)

DVD-RW

2x

2x, 1x depending on media

CD-R

32x max

16x

CD-RW

32x max

8x, 4x depending on media

CD or CD-ROM

32x max

Digital audio signals from the SuperDrive can be played through the sound outputs under the control of the Sound Manager in System Preferences.

The SuperDrive is connected as device 0 (master) to an independent ATA interface capable of multi-word DMA mode 2, 16 megabytes per second. This interface is compatible with ANSI-INCITS industry standard ATA/ATAPI-6.

Video Display

The built-in video display uses a 17-inch CRT (16-inch viewable diagonal). The CRT uses shadow-mask technology and has a dot pitch of 0.25 mm. The display has a fixed horizontal scan rate (72 kHz) and supports five resolutions. Table 3-6 lists the resolutions and the vertical scan rates supported.

The display supports pixel depths up to 24 bits (millions of colors) at all resolutions.

Table 3-6  Display resolutions and pixel depths

Resolution

Vertical rate

Pixel depth

640 by 480

138 Hz

24 bits

800 by 600

112 Hz

24 bits

1024 by 768

89.0 Hz

24 bits

1152 by 864

80.0 Hz

24 bits

1280 by 960

72.0 Hz

24 bits

External Display Port

The eMac computer has a video output port for connecting an external video monitor or projector. The port supports both VGA and TV signals by means of adapters. The port detects the type of adapter connected to it and programs the graphics IC to provide the appropriate type of video signals, as shown in the table below.

Table 3-7  Display adapters

Adapter type

Video signals

Connector type(s)

Apple VGA adapter

RGB

VGA 15-pin miniature D-type

Apple Video adapter

Composite and S-video TV signals

RCA and S-video

Resolutions supported are nominally 640 by 480, 800 by 600, and 1024 by 768 pixels (based on the EDID and attached monitor). When either type of display adapter is connected, the settings for the resolutions with multiple vertical refresh rates are selectable in the Monitor control panel or control strip.

Composite video and S-video signals can be displayed on either an NTSC display or a PAL display. When a display is connected by way of the video adapter, the computer detects the type of adapter and enables the composite and S-video outputs. The settings for the resolutions and standards (NTSC or PAL) are then selectable in the monitor control panel or control strip.

The video output mirrors the flat panel display: internal and external video share the same buffer, and the hardware sends the image to both displays.

Note: A VGA display adapter is required to convert to VGA display.

Video Display Connector

The video display connector is a 14-pin rectangular connector (Hosiden TCX3143 or compatible). The connector pins are identified in Figure 3-3.


Figure 3-3  Video display connector

Video display connector

The eMac computer detects the type of display adapter that is plugged in and programs the graphics IC to route the appropriate video signals to the connector. The signal assignments on the video connector are shown in Table 3-8. The signal assignments for the video adapter are shown in Table 3-9.

Table 3-8  Video signals for a VGA display

Pin

Signal name

Pin

Signal name

1

Ground

8

+5 volts

2

VSync

9

Blue video

3

Hsync

10

DDC data

4

Red return

11

DDC clock

5

Red video

12

Ground

6

Green return

13

/Cable detect

7

Green video

14

Blue return

Table 3-9  Video signals for a TV display

Pin

Signal name

Pin

Signal name

1

Ground

8

+5 volts

2

n.c.

9

Composite video

3

n.c.

10

DDC data

4

Ground

11

DDC clock

5

S-video C

12

Ground

6

Ground

13

Ground (for /Cable Detect)

7

S-video Y

14

Ground

The cable detect function on pin 13 is implemented by connecting pin 13 to ground in the display cable. The computer detects the video adapter by reading its EDID (Extended Display Identification Data) via DDC.

The video display connector is compliant with the VESA specification (DDC version 3).

Older Monitors Not Supported

The computer supports current video monitors. Some older monitors are not supported, including the following Apple monitors:

Keyboard

The eMac comes with an Apple Keyboard. It is a USB compatible full-size keyboard with 16 function keys and separate groups of numeric keypad and editing keys.

The keyboard also provides two additional USB ports; see “Keyboard and USB.”

Keyboard Features

Here is a list of the features of the Apple Keyboard.

Note: There is no power key on this keyboard.

Keyboard Layout

There are localized versions of the Apple Keyboard for use in different parts of the world. The three standards used are ANSI (US and North America), JIS (Japan), and ISO (Europe). Figure 3-4 shows the keyboard layout for the ANSI keyboard.

Applications can determine which keyboard is connected by calling the Gestalt Manager and checking for the corresponding value of the gestaltKeyboardType selector.

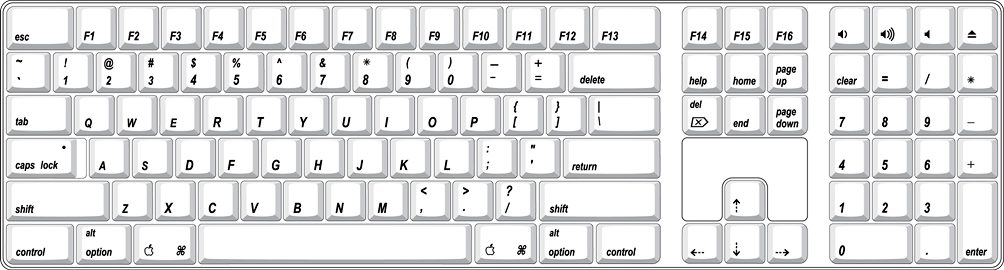

Figure 3-4  ANSI keyboard layout

ANSI keyboard layout

MultiMedia Control Keys

The keyboard has six multimedia keys: Volume Up, Volume Down, Mute, Brightness Up (F15), Brightness Down (F14), and Eject. Theses keys provide direct control of the features on the computer by way of the USB.

Keyboard and USB

The Apple Keyboard is designed to work with the eMac by way of the USB ports. The keyboard has a captive cable with a USB Type A connector. The keyboard is a bus-powered USB hub with two USB Type A ports.

!

Warning: A bus-powered hub does not provide enough power to support a second bus-powered hub. To use a second bus-powered hub with an eMac, connect it to the second USB port on the computer, not to a port on the Apple USB keyboard.

Apple provides a HID class driver for the Apple USB keyboard, which supports the USB boot protocol. Other keyboards intended for use on the Macintosh platform must support the HID boot protocol, as defined in the USB Device Class Definition for Human Interface Devices (HIDs). For information about the USB HID definition, see the HID reference in “USB Interface.”

Mouse

The eMac comes with an Apple Mouse. The mouse case is made of polycarbonate plastic like the computer.

The Apple Mouse uses optical tracking in place of the traditional rolling ball. It works on almost any surface, though non-reflective, opaque surface without repetitive patterns work best.

Sound System

The sound system provides high-quality stereo sound input and output through the built-in microphone and speakers. The user can also connect external input and output devices by way of the sound input and output jacks.

Note: The eMac also supports speakers and microphones that connect to the USB port.

To maintain the highest fidelity when digital audio program material from CDs is played, the audio data is kept in digital form until just before being sent to the internal speakers or the headphone jack.

The sound system is based on a set of ICs that perform digital audio processing functions such as output equalization, dynamic range compression, and volume control.

The sound system supports sample sizes up to 16 bits at a sample rate of 44.1 kHz.

Sound Inputs

The sound system accepts inputs from five possible sources:

Built-in Microphone

The sound signal from the built-in microphone is amplified by a preamp and sent to the codec circuits in the audio IC.

External Audio Line-in Jack

The audio line-in jack is a 3.5 mm miniature phone jack located on the I/O panel on the right side of the computer. The line-in jack accepts line-level stereo signals. It also accepts a stereo miniplug-to-RCA cable adapter for connecting stereo equipment to the computer.

The line-in jack signal connections are:

The line-in jack has the following electrical characteristics:

Sound Outputs

The sound system sends computer-generated sounds to two destinations:

Internal Speakers

The computer has two internal speakers. The computer turns off the sound signals to the internal speakers under the following conditions:

Headphone Jack

The headphone jack is located on the I/O panel on the right side of the computer. The jack provides enough current to drive a pair of low-impedance headphones.

The headphone jack has the following electrical characteristics:

Headphones should have an impedance not lower than the recommended minimum impedance of 32 ohms. Headphones with lower impedance can be used, but with some degradation in performance.

Sound Specifications

The frequency response of the sound circuits, not including the microphone and speakers, is within plus or minus 1 dB from 20 Hz to 20 kHz.

Total harmonic distortion plus noise (THD+N) as a percentage of full scale are shown in Table 3-10.

Table 3-10  Distortion specifications

Connector

THD+N

Line input

0.03%

Headphone jack, open circuit

0.03%

Headphone jack, 32 ohm headphones

0.5%

The signal-to-noise ratios (SNR) for various inputs and outputs are shown in Table 3-11. The values shown are unweighted.

Table 3-11  SNR specifications

Connector

Signal-to-noise ratio

Microphone

65 dB

Headphone jack

90 dB

Line input

85 dB

Internal CD or DVD

90 dB



< Previous PageNext Page > Hide TOC


© 2003 Apple Computer, Inc. All Rights Reserved. (Last updated: 2003-06-09)


Did this document help you?
Yes: Tell us what works for you.
It’s good, but: Report typos, inaccuracies, and so forth.
It wasn’t helpful: Tell us what would have helped.
